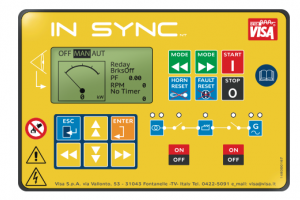

InSync Controller
The InSync automatic device allows automated management of advanced power systems. When the mains fail, InSync starts the genset according to a pre-set logic, switches from mains to genset, and seamlessly feeds the user system. When the mains return, InSync switches back, cools down the genset, and safely shuts it down. Main characteristics include: clear communication via a large backlit display, sophisticated event analysis, complete engine and electrical parameters, and the ability to integrate additional modules.
Hardware Features
The large size screen offers a lot of information. Every time it is switched on, a screen page appears with model data and support numbers.
Relays and fuses are placed next to the control panel, making them highly visible and easily accessible.
The emergency stop button is mounted directly on the control panel for immediate shut down in case of emergency.
Fully configurable inputs and outputs guarantee seamless data communication with the PLC or BMS.
Extensive parameters are supported by additional modules and software extensions that increase the system's application potential.
The automatic version features all necessary interfaces for integration with changeover switch panels or onboard user systems.
Controller Functions
- Language selection (Italian, English, French, German, Spanish)
- Stop active function & Crank engine speed function
- Password-protected user menu to change parameters
- Programmable maintenance countdown
- LED signal status (Normal, Pre-alarm, Alarm, Block)
- Acoustic alarm & Display selected operating mode
- PC communication with standard RS 485 serial port
- Last 16 alarms memorised (Up to 4000 Events with AMF card)
- Programmable analogue/digital outputs for fuel, oil, temp, etc.
Measurements
- T-Voltage (R-S, S-T, T-R, R-N, S-N, T-N)
- Current on all 3 phases
- Frequency & Engine speed
- Engine cooling temperature & oil pressure
- Battery & Alternator pickup voltage
- Operating hours & Start attempts
Available Extensions
Auto Change Over (ATS)
PC Interface
20 Alarm Card
