SPECIFICATIONS
| Type | 6 Cylinders |
| Air intake type | Turbocharged & Intercooler |
| Cooling mode | Water cooling |
| Governor mode | Electronic |
| Bore x Stroke(mm) | 186 x 215 |
| Compression ratio | 15:1 |
| Rated speed(rpm) | 1500 |
| Displacement(L) | 35.1 |
| Starter Motor | 24v |

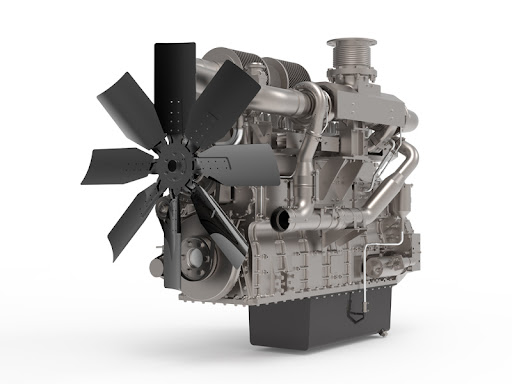

Actual engine apperance may differ from image.
OUTPUT & CONSUMPTION
| Rated power(without fan)(kW) | 882/1500 |
| Standby power(without fan)(kW) | 970/1500 |
| Fuel consumption(g/kWh) | 209.4 |
| Oil capacity including filter(L) | 100 |
DIMENSIONS
| Dry weight of base(kg) | 4000 |
| Overall dimension(base)(mm) | 2429 x 1387 x 2146 |
LIQUIDS & HEAT
| Fan consumption(kW) | 30kW |
| 27°C air consumption(m³/min) | 64.9 m3/min |
| Heat rejection of exhaust(kW) | 650°C @ 1,500RPM |
| Exhaust gas flow(m³/min) | 162.6 m³/min |
PLEASE NOTE: We do not sell standalone engines. We only sell complete generators.
