SPECIFICATIONS
| Type | 4 Cylinder, Water cooled |
| Air intake type | Turbocharged, Intercooled |
| Cooling mode | Water cooled |
| Governor mode | Electronic |
| Bore x Stroke(mm) | 105 x 124 |
| Compression ratio | 16:1 |
| Rated speed(rpm) | 1500 |
| Displacement(L) | 4.3 |
| Alternator | 4.5 kW |
| Starter Motor | 24v |

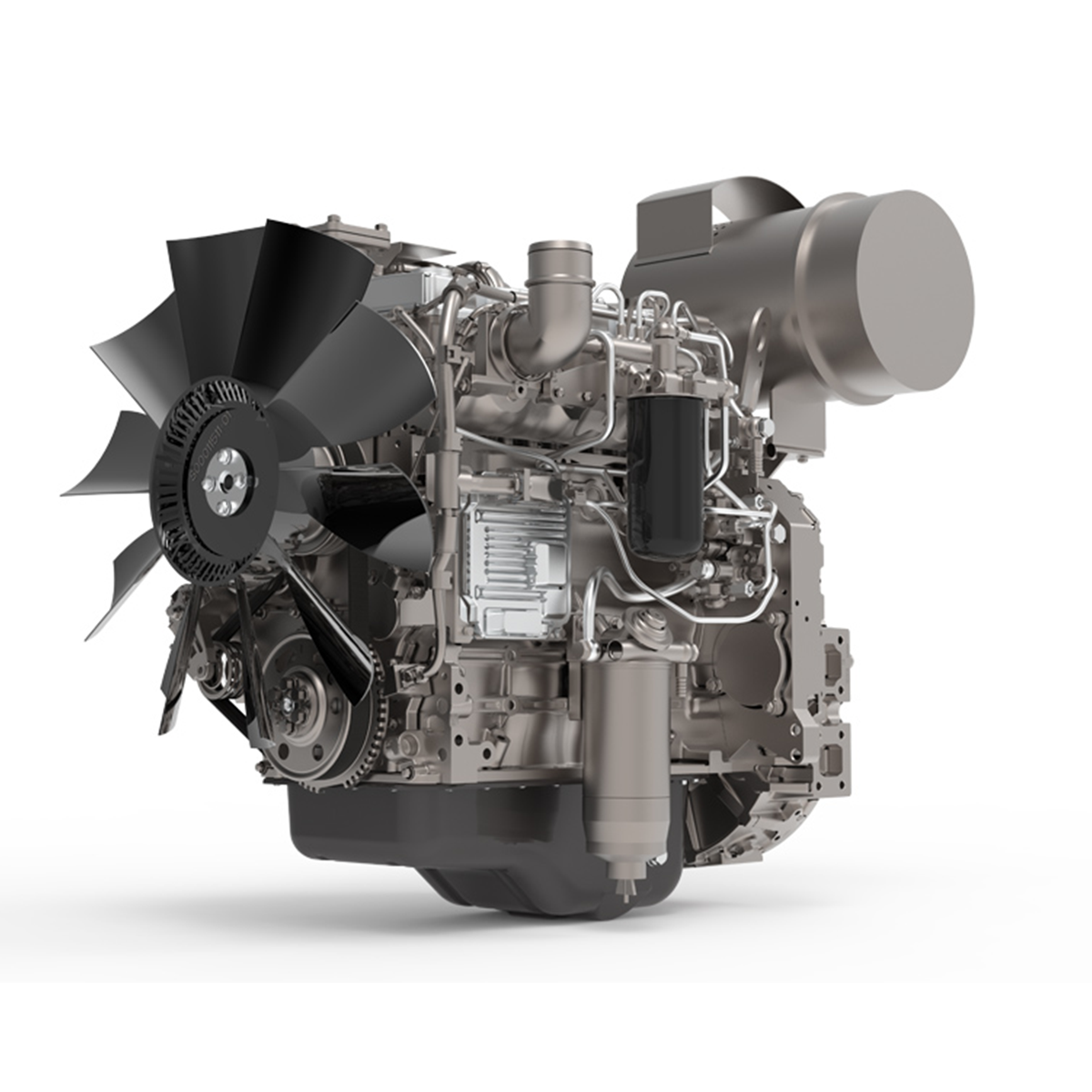

Actual engine apperance may differ from image.
OUTPUT & CONSUMPTION
| Rated power(without fan)(kW) | 120 |
| Standby power(without fan)(kW) | 132 |
| Fuel consumption(g/kWh) | 28.6 |
DIMENSIONS
| Dry weight of base(kg) | 450 |
| Overall dimension(base)(mm) | 1053x717x1158 |
LIQUIDS & HEAT
| 27°C air consumption(m³/min) | 8.1m³/min |
| Heat rejection of exhaust(kW) | ~600°C |
| Exhaust gas flow(m³/min) | 18.2m³/min |
PLEASE NOTE: We do not sell standalone engines. We only sell complete generators.
