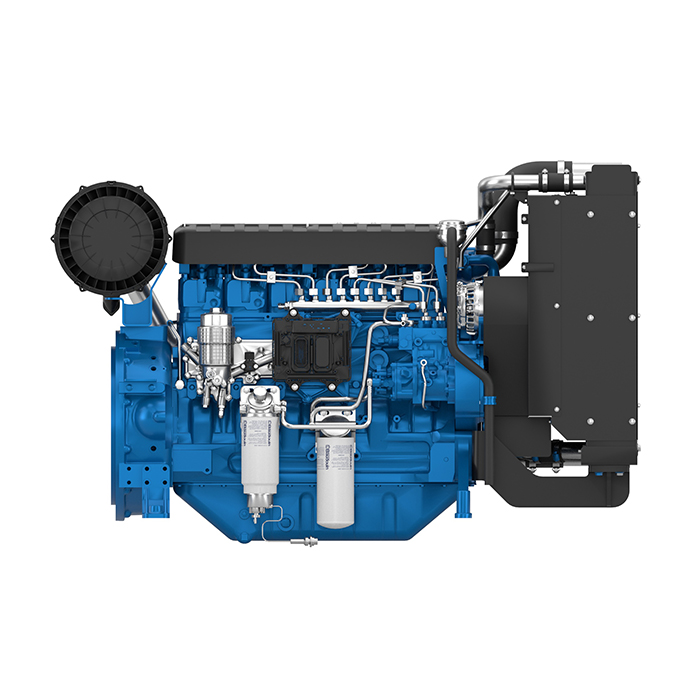

Engine Specifications

SPECIFICATIONS

Type6-cylinder 4-stroke
Air intake typeTurbocharged and Aftercooled
Cooling modeWater cooling
Governor modeElectronic
Bore x Stroke(mm)105 x 130
Compression ratio18:1
Rated speed(rpm)1500
Displacement(L)6.75

OUTPUT & CONSUMPTION

Rated power(without fan)(kW)138
Standby power(without fan)(kW)152
Fuel consumption(g/kWh)32.6
Oil consumption(L/h)≤ 0.2%
Oil capacity including filter(L)17
Emission compliantN/A
The flywheel shell interfaceSAE 3
The flywheel shell interface11.5" flywheel

DIMENSIONS

LIQUIDS & HEAT

TEST
