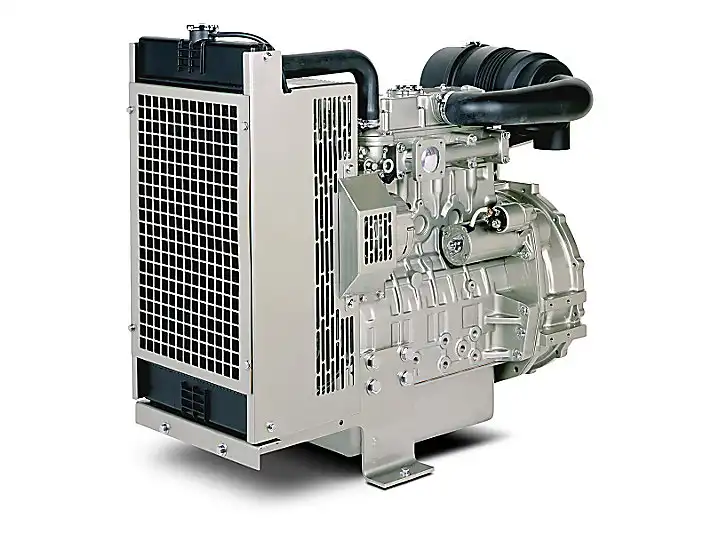

Engine Specifications

SPECIFICATIONS

Type4-cylinder, 4-stroke
Air intake typeNaturally aspirated
Cooling modeWater cooling
Governor modeMechanical
Bore x Stroke(mm)84x100
Compression ratio23.3:1
Rated speed(rpm)1500
Displacement(L)2.216

OUTPUT & CONSUMPTION

Rated power(without fan)(kW)18.7
Standby power(without fan)(kW)20.6
Fuel consumption(g/kWh)5.3
Steady state speed regulation(%)±0.75%
Oil capacity including filter(L)10.6
The flywheel shell interfaceSAE 4 Long
The flywheel shell interfaceHigh inertia flywheel to SAE J620 Size 190.5 mm (7½ in) Heavy

DIMENSIONS

Dry weight of base(kg)242

LIQUIDS & HEAT

TEST
