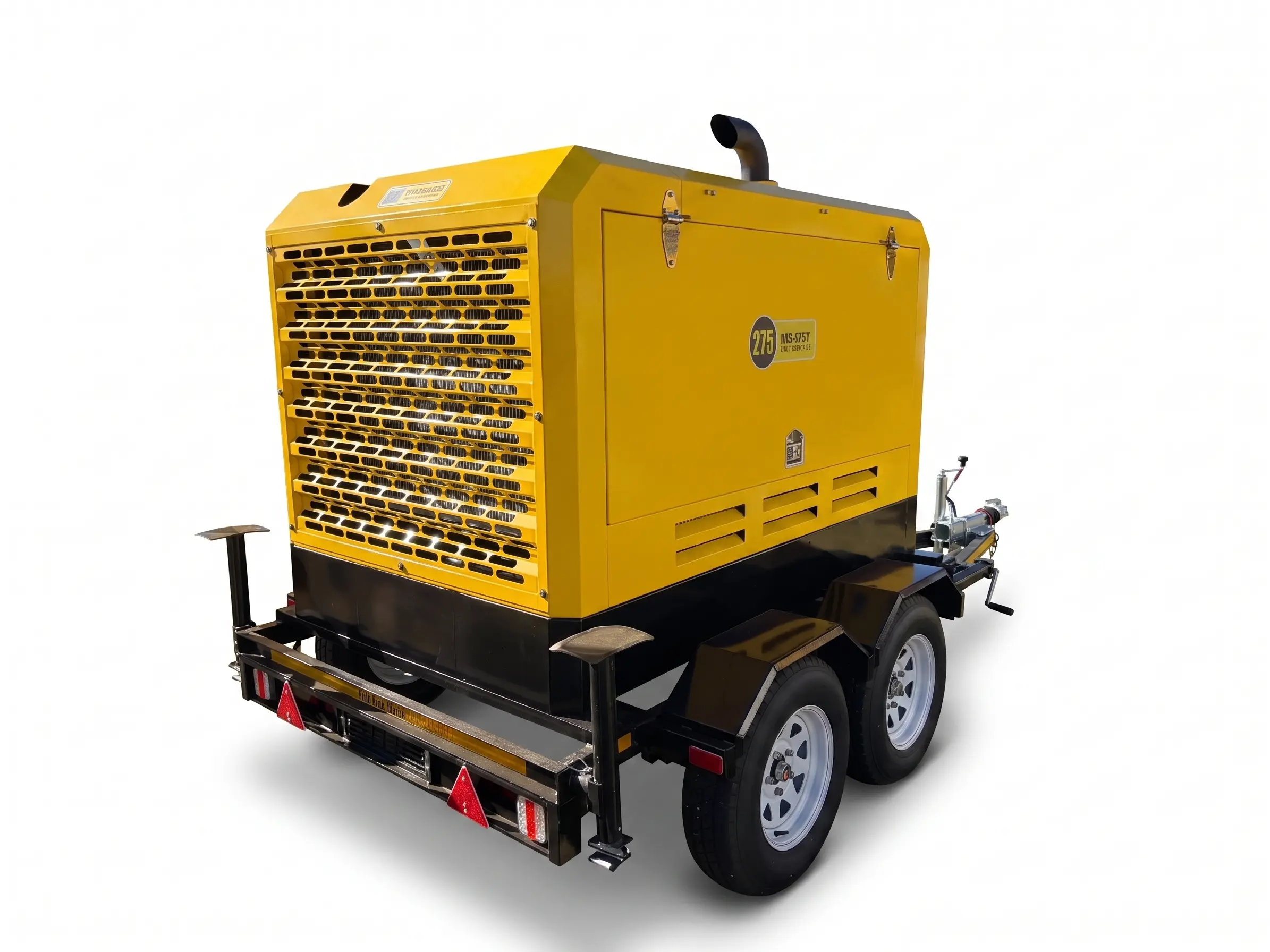

275 CFM Mobile Air Compressor
FAW
Availability: LAST ONE
Key Features
- Maximum 275 CFM
- Working pressure: 7bar / 100psi
- Towable up to 80 kph
- 12 Volt Electric Starter Starting Voltage
- FAW, 4DX22-96-YM10M Powerful Diesel Engine
- Four cylinder, Turbo-Charged, water cooled diesel engine
- Public Road Use - Yes
Performance
- FAD (CFM) 275 CFM
- FAD (m³/min) 7.9 m³/min
- Working Pressure 7bar / 100psi
- Air End Type Rotary Twin Screw
Compressor & Trailer
- FAD (CFM) 275 CFM
- FAD (m³/min) 7.9 m³/min
- Working Pressure 7bar / 100psi
- Outlets Rotary Twin Screw
- Compressor Model YNE178RA
- Compressor Head BAOSI
- Max Tow Speed 80 kph
- Trailer Type Double Axle
- Public Road Use Yes
Engine Data
- Brand FAW
- Model 4DX22-96-YM10M
- Type 4-cylinder 4-stroke
- Prime Power 37 kW
- Displacement 3.86 L
General Data
- Controller ACC4100
- Structure Enclosed
- Fuel Type Diesel
- Engine Oil 15W40
- Oil Capacity 9 L
Dimensions & Tank
- Length 2650 mm
- Width 1870 mm
- Height 1950 mm
- Weight 1380 kgs
- Fuel Tank 240 l
- Water Tank 7.9 l
- Cons. @ 75% 10.8 l/h
NOTE: ALL ratings are approximate and at SEA LEVEL. Altitude can affect the output of the engine and compressor. A rough guide to de-rate performance is 1% for every 100m above sea level.
Frequently Asked Questions
No, this product does not require installation. It is a standalone mobile air compressor designed for immediate deployment.
All prices exclude delivery. We can arrange specialized transport based on your required location.
The unit is fully self-contained. However, we do not supply the pneumatic tools, breakers, or air-hoses required to use the air compressor.
No, it is not recommended to use this type of air compressor for other applications outside of its designed parameters.
The warranty is 12 Months or 1000 Hours, whichever occurs first. This is a limited carry-in warranty (travel to site is not included). The unit must be returned to the branch of purchase for assessment.
