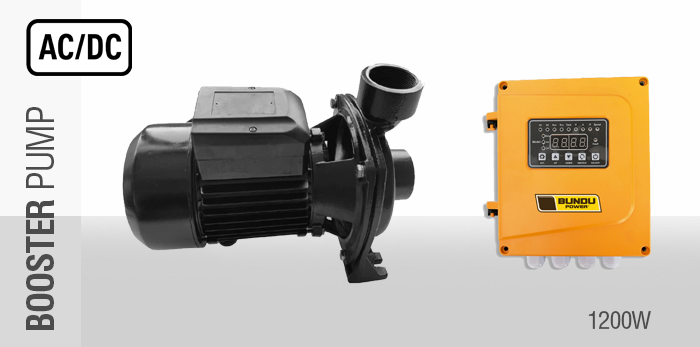

CPM-158-A-1200 Solar Pressure Pump
A hybrid pressure pump is an advanced water-boosting system that operates on both solar panels (DC) and standard mains electricity (AC). The CPM-158-A-1200 prioritizes free solar energy during daylight hours and effortlessly switches to the grid at night, guaranteeing 24/7 pressurized water delivery.
Hybrid AC/DC Model
Availability: IN STOCK
Power Specs
| Hybrid AC/DC Compatible | |
| Voltage: | 60 - 450 V |
|---|---|
| Power: | 1200 W |
| Impeller: | Copper |
Performance
| Max Flow: | 7.9 m³/h |
|---|---|
| Litres Per Min: | 131 L/min |
| Max Head: | 37 m |
| Max Suction: | 3 m |
Connection & Size
| Outlet Size (Inch/mm) | 1" x 1" / 25mm |
|---|---|
| Length | 480 mm |
| Width | 285 mm |
| Height | 435 mm |
| Weight | 16 kgs |
Panel Requirements
Recommended Setup (Sold Separately)
4 x 620W Solar Panels
Important: According to Bundu Power's technical specifications, the pressure pump requires the water source to be above or at the same level as the inlet. It cannot pull water from deep below it. The "HEAD" rating represents how high it can push the water upwards on the outlet side.
Frequently Asked Questions
This hybrid booster pump connects to both your solar panels and your standard electrical grid. During the day, the pump runs primarily off free solar power. When the sun goes down or during heavy storms, the pump seamlessly switches over to AC mains electricity, allowing you to use your showers and taps at full pressure anytime.
While it is technically possible, Bundu Power's solar technicians do not directly recommend it as it requires additional inverters and charge controllers to design correctly. For nighttime pressure needs, we heavily recommend utilizing a Hybrid Pressure Pump or pumping water up into an elevated storage tank during the day for gravity-fed pressure at night.
No, the price doesn't include installation. Bundu Power can offer professional installation in the Gauteng region, please ask your sales consultant for more information regarding certified installers.
According to Bundu Power's technical specifications, it is critical to note the following when installing your solar booster pump:
- Do not exceed the controller's input voltage and wattage. This will cause damage and void the warranty.
- Do not install in a sealed enclosure as this will restrict the cooling of the controller.
- Do not restrict air-flow to the controller.
- Ensure that the correct cable size is used for the length of cable required.
All prices exclude delivery. We will gladly calculate a custom delivery rate for you based on your location, or you can arrange collection at a Bundu Power branch.
The warranty is 12 Months. It is a limited factory warranty from Bundu Power. Travel to site is not included. The goods need to be returned to the branch of purchase for technical assessment.
