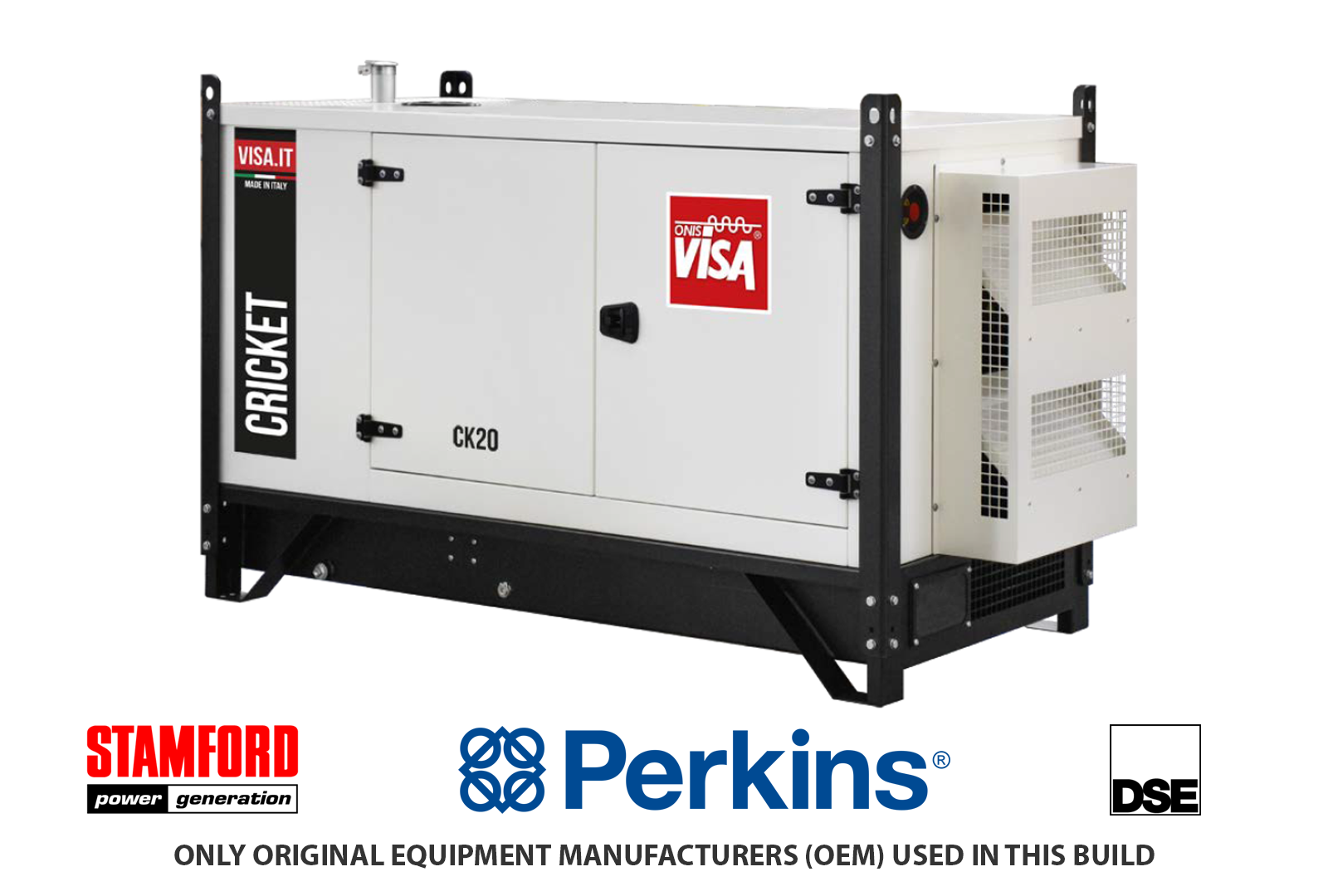

FEATURES
- Maximum 33.0 kVA, 400 V, 1500 RPM
- 90 litre tank for 16 hrs @ 75% Load
- Industrial brushless alternator with AVR
- Steel baseframe, retention basin & fuel tank with sensor
- World wide after sales service and technical support
- Test report, manuals and electrical drawings supplied
- Modular design, open and silent version available
- Warranty
PERFORMANCE
| Prime power (PRP) | 30.0 kVA |
| Prime power (PRP) | 24.0 kW |
| Standby power (LTP) | 33.0 kVA |
| Standby power (LTP) | 26.4 kW |
| Power factor | 0.8 |
| Frequency (Hz) | 50 Hz |
| Voltage (V) | 400 V |
GENERAL ENGINE DATA
| Genset Controller | |
| Engine brand | PERKINS |
| Engine model | 1103A-33G |
| Cylinders | 3 |
| Speed | 1500 RPM |
| Cubic capacity | 3.30 |
| Air intake | Aspirated |
| Standard voltage | 12 V |
| SAE | 3-11½ |
| BMEP | 684 |
| Cooling | Water |
| Flywheel P.R.P. | 28.2 kW |
| Flywheel Stand-by | 30.9 kW |
EMISSIONS
| TA Luft | Not available |
| TA Luft2 | Not available |
| EPA | Not available |
| Stage | Not available |
GENERATOR DIMENSIONS
| Length | 2030 mm |
| Width | 945 mm |
| Height | 1010 mm |
| Weight | 1010 kgs |
| Tank Capacity | 90 l |
FUEL CONSUMPTION
| Fuel Cons. at 110% | 7.9 l/h |
| Fuel Cons. at 100% | 7.1 l/h |
| Fuel Cons. at 75% | 5.4 l/h |
| Fuel Cons. at 50% | 3.9 l/h |
| Fuel Cons. at 25% | 2.5 l/h |
SPEED REGULATION
| Electronic regulator | On Request |
| Precision class | G2 |
ENGINE LIQUIDS
| Oil quantity | 8.3 l |
| Antifreeze quantity | 4.4 l |
HEAT FROM ENGINE
| Heat from radiator | 16.0 kW |
| Heat from exhaust | 22.0 kW |
| Heat from radiation | 5.0 kW |
ALTERNATOR
| Brand | STAMFORD |
| Model | PI144G |
| Continuous Power | 30.0 kVA |
| Standby Power | 33.0 kVA |
| Connection | Series star |
| Phases | Three phases with neutral |
| Winding | 12 terminals Winding 311 |
| Terminal No | 12 |
| IP Protection | 23 |
| Regulator | AS480 |
| Precision | 1.0 ± % |
HEAT FROM EXHAUST
| Exhaust temperature | 500 °C |
| Cooling air flow | 53.00 m³/min |
| Combustion air flow | 2.16 m³/min |
| Exhaust gas flow | 5.70 m³/min |
PLEASE NOTE: ALL ratings are approximate and at SEA LEVEL. Engines need to be de-rated for altitude. A rough guide to de-rate performance is 1% for every 100m above sea level. I.e: A 20kVA at sea level is an 18kVA at 1000m above sea level (10% less) etc.
